#Braumeister PLUS v.21 – with integrated Wi-Fi

Delivery is Free within New Zealand to all cities and main towns (excludes Rural delivery).

$3,975$4,995

Latest model is available now!

New control system with touch screen, integrated brewing guide and Wifi for software updates and sync of recipes

  • Made of stainless steel
  • Welded cooling jacket for easy and hygienic cooling with water (no cooling spiral necessary)
  • Patented malt pipe system for effective and gentle wash out of the malt; no piping on the outside of unit
  • Easy cleaning by extra bottom valve on the PLUS, smooth welding, 3D surface and easy pump cleaning by a simple pump opening

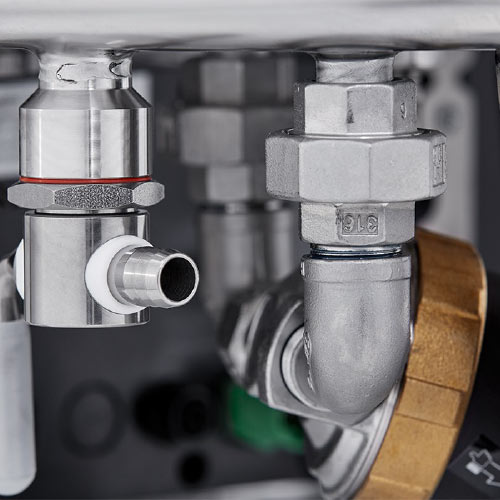

  • Service friendly construction: all connections to pump, control and sensor are screwed and therefore fast and simple to replace if necessary
  • Braumeister stays up to date with software updates by integrated Wifi, and new accessories which are developed compatible to already sold devices
  • PLUS Braumeisters fit the need for the Low Oxygen Brewing (extra accessory)

The new automatic control system brews with your own individual recipes and guides you through the brewing process, displaying the exact ingredients including quantities for each step. Recipes and software updates can be synced automatically with the integrated Wifi. The time and temperature are precisely maintained through all brewing phases (by the temp. sensor in the center rod in the middle of the malt). The control system can be programmed with preset or individual recipes. A convenient new feature is the timer function for starting the brewing process. Simply set the desired time and the Braumeister starts automatically.

In contrast to the cumbersome equipment of some other hobby brewers, the Braumeister does not need to be stirred all the time. Thanks to the patented malt pipe technology, the malt is not washed out by a stirring device rather the wort is circulated gently and conveniently. Nothing can burn and nothing needs to be racked during the brewing phases. Due to the direction of flow against gravity, the malt loosens up during pump breaks and the malt is washed out optimally and gently for a more intensive malt aroma.

Mashing, lautering, hop boiling and, with the appropriate accessories, even fermenting – everything takes place in one kettle. This way brewing more complex beers is easier than ever before. For emptying the waste water there is an additional outlet tap mounted to the tank bottom, which makes cleaning remarkably easy.

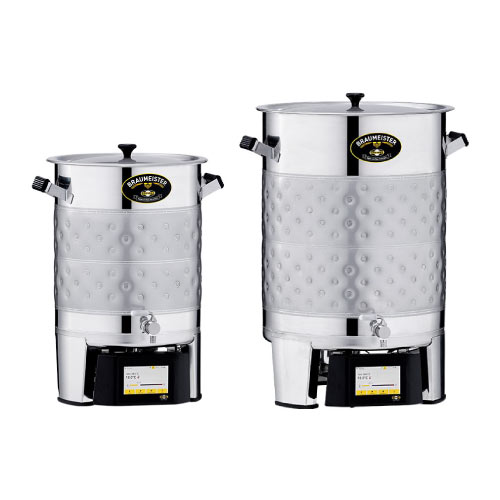

The #Braumeister PLUS is available with a capacity of 20 or 50 litres. Made in Germany.



TECHNICAL DETAILS

Control software:

  • Brewing guide - shows also quantity and kind of raw materials
  • Exact temperature measuring
  • Helpful information in the brewing process
  • Pump pauses are adjustable
  • Integrated Wifi for software updates over the air and sync of recipes with MySpeidel
  • Integrated data base of raw materials
  • Timer function - for time delayed brew-start
  • Option for additional accessories for auto cooling
  • Ferment control for the option to ferment in the Braumeister
  • Ferment control allows data of Tilt-Hydrometer (not included)

Control hardware:

  • IP 65 water resistant

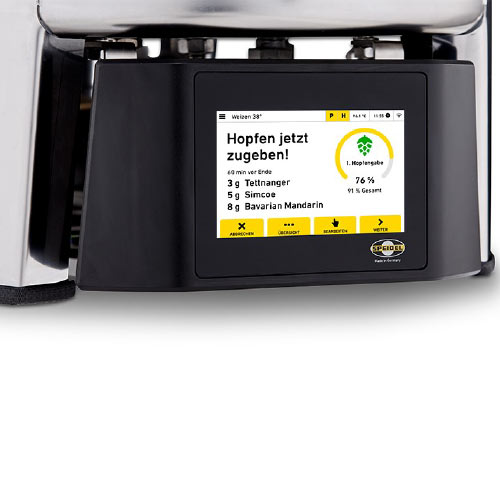

  • Touchscreen 5"

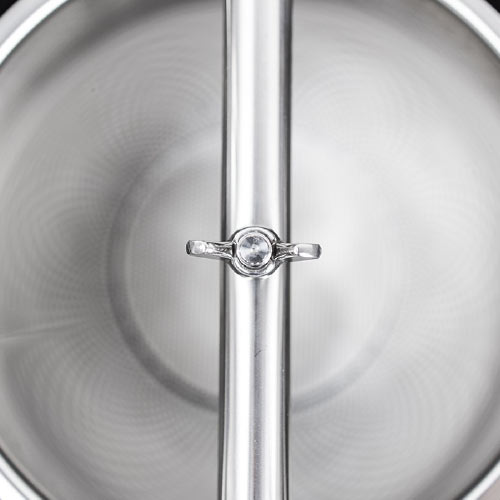

  • Temp sensor inside the center rod in the middle of the malt pipe

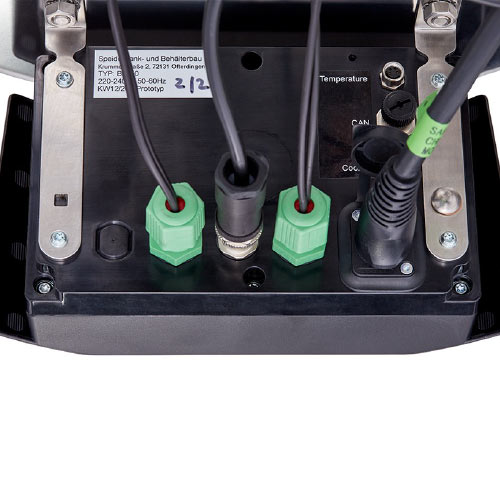

  • Additional connections 24V and CAN for future accessories
  • Wifi and Bluetooth integrated

20L Specifications

  • Quantity: 20L of finished beer (normal beer) = approx. 23L of wort
  • Max. malt quantity 6 kg
  • Effective weight: 19 kg

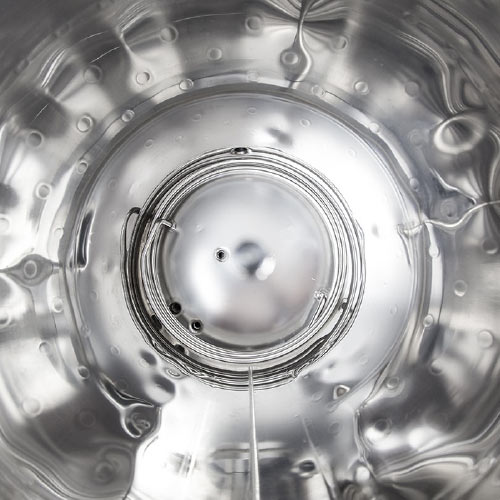

  • Heating coil: 2,000 W output
  • Pump: 1x 27 W - adjustable speed
  • Power supply connection: 230 V (fuse protection min. 10 A)
  • Control system: fully automatic brewing control (temperature, time, pump)
  • Maximum malt quantity: 6 kg
  • Weld-on double jacket for cooling

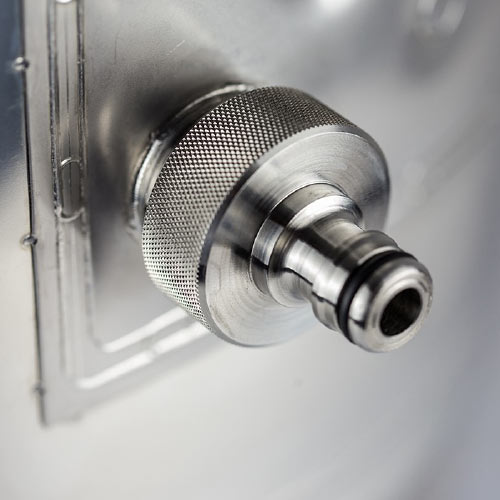

  • Connectors to jacket 1" ET 2x inclusive Gardena connectors
  • Additional outlet tap ¾" on tank bottom for easy cleaning
  • Dimensions:
    • H = 60 cm Diam. = 40 cm
    • Packaged size: 74 x 60 x 61 cm (L x W x H)
    • Shipping weight: 24 kg

50L Specifications

  • Quantity: 50L of finished beer (normal beer) = approx. 55L of wort
  • Max. malt quantity 13 kg
  • Effective weight: 30 kg
  • Heating coil: 3,200 W output
  • Pump: 1x 27 W - adjustable speed
  • Power supply connection: 230 V (fuse protection min. 16 A)
  • Control system: fully automatic brewing control (temperature, time, pump)
  • Maximum malt quantity: 13 kg
  • Weld-on double jacket for cooling
  • Connectors to jacket 1" ET 2x inclusive Gardena connectors
  • Additional outlet tap ¾" on tank bottom for easy cleaning
  • Dimensions:
    • H = 70 cm Diam. = 50 cm
    • Packaged size: 74 x 60 x 61 cm (L x W x H)
    • Shipping weight: 37 kg
