Braumeister 1000L

Delivery is Free within New Zealand to all cities and main towns (excludes Rural delivery).

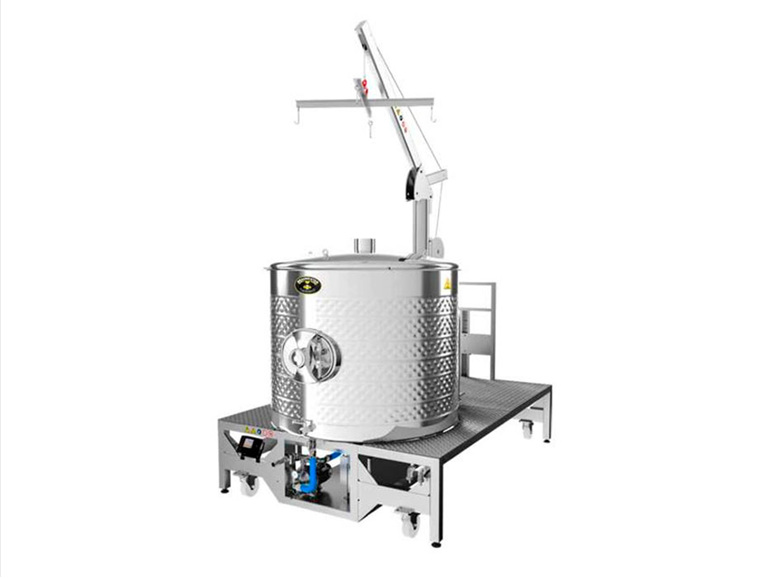

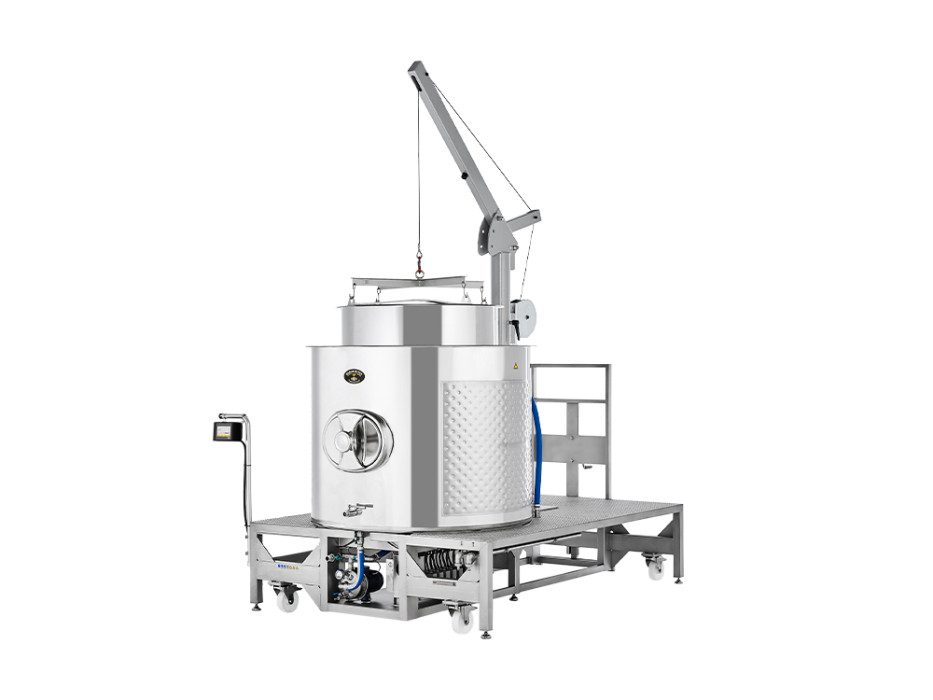

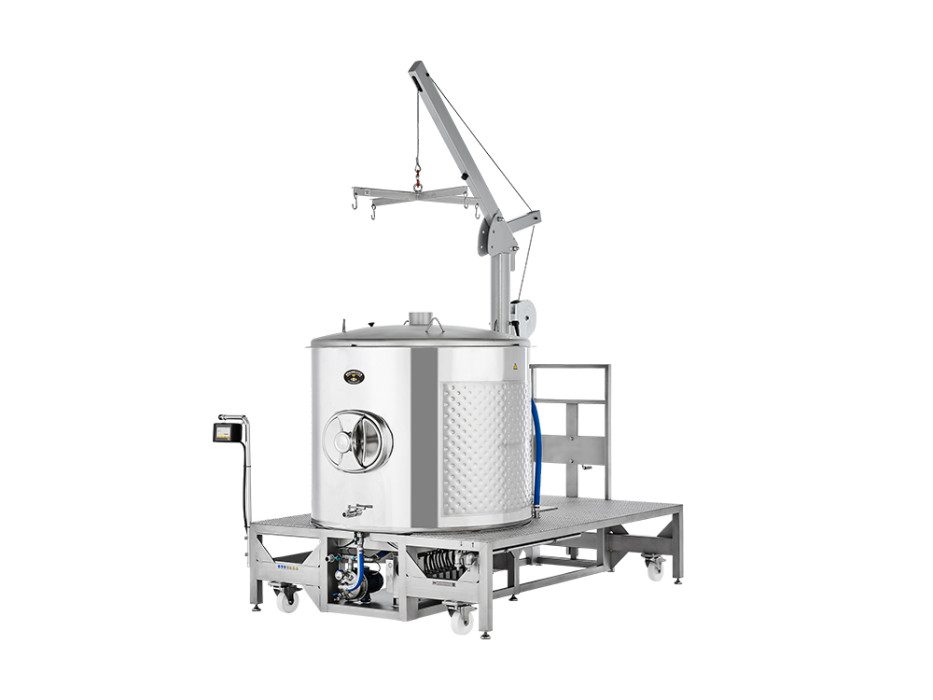

By popular customer request, Speidel have developed the 1000 Litre Braumeister.

For those who want to brew even more beer, this model is just right. Even with a 1000 litre batch, the brewing process remains as simple as with its little brother. The fully automatic brewing control takes over the brewing of individually set recipes and runs through all brewing phases with precise timing and temperature. Brewing, lautering, hop boiling, whirlpool and cooling are all carried out in one tank. Due to the easy to operate crane with a winch, even the large malt tube can be easily lifted out.

The Braumeister can be fixed with adjustable feet, but remains freely movable if required due to its wheels. Despite the impressive volume, even the biggest Braumeister remains a compact brewing system.

Product Code: SP41000​-20

“Item not held in stock, imported to order only. Local delivery from port of arrival additional”


  • Heating coil: 12 x 3000 W output
  • Pump: 370 W
  • Power supply connection: 400V 3-phase (fuse protection min. 63 Amp.) [NB: Requires wiring & NZ plug, not supplied]
  • Total power consumption: 38 kW
  • Cooling: 2.56 m2 double jacket surface area. An additional heat exchanger plate for cooling is recommended (not supplied)
  • Control system: fully automatic brewing control (temperature, time, pump)
  • Pressure sensor in pressure line to control pump via pressure (or speed as before)
  • Vaulted top with DN 150 connection piece for extractor hood and hop delivery opening
  • Max. malt quantity: 225 kg

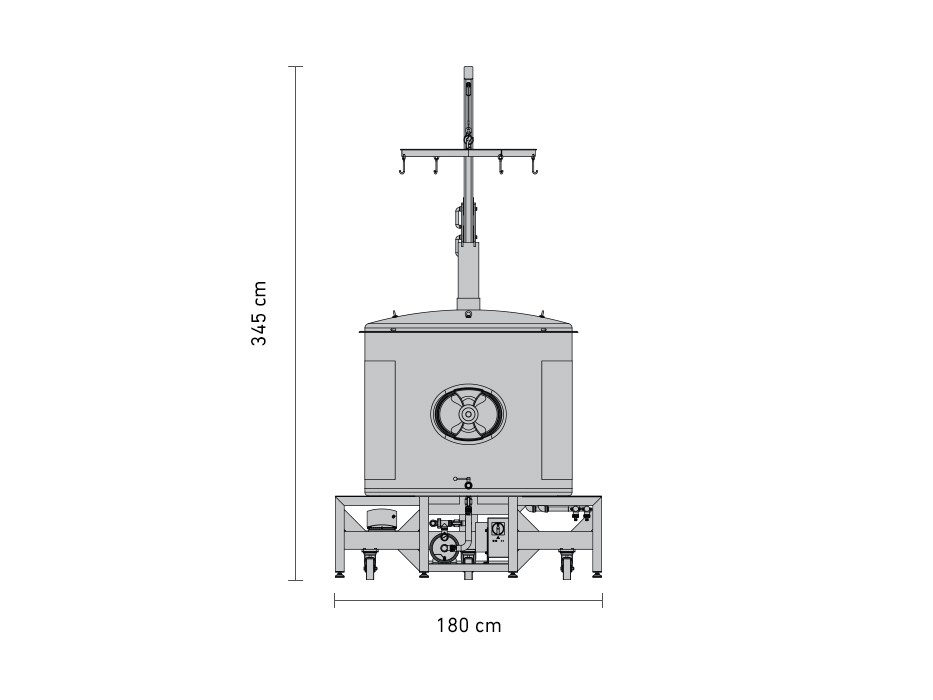

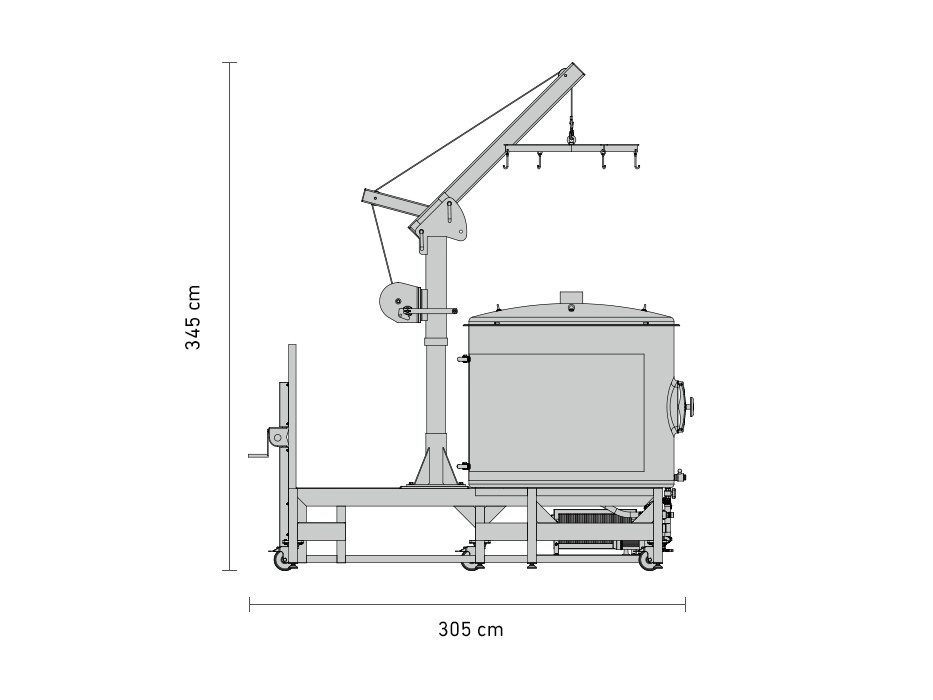

  • Weight: 850kg; Dimensions: 305 x 180 x 345 cm (L x W x H)
  • Shipping Weight: 980kg in wooden crate; Crated Dimensions: 310 x 190 x 195 cm (L x W x H)
