#Braumeister 100L

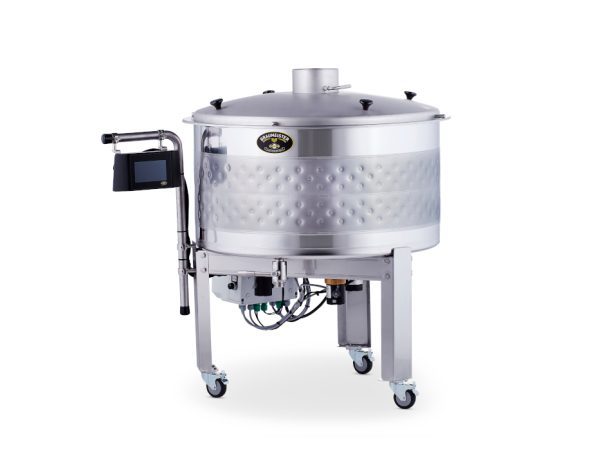

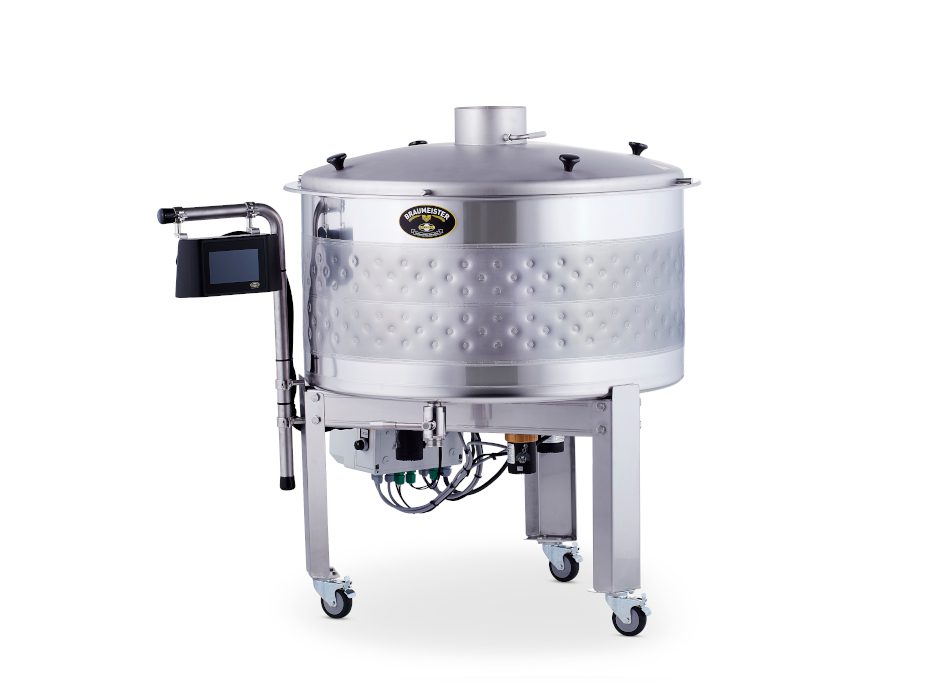

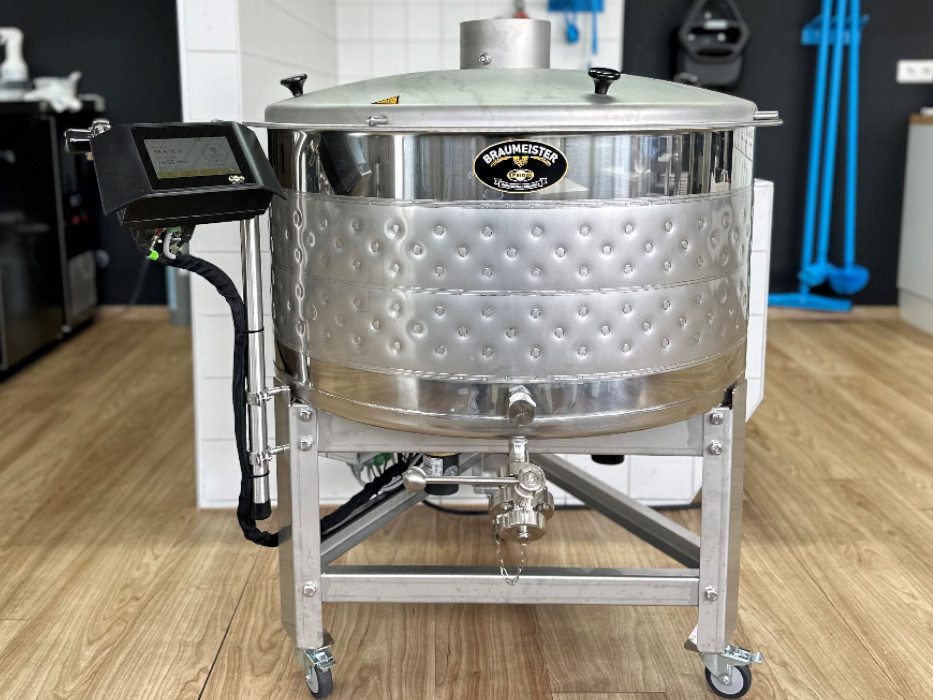

The NEW Braumeister 100L is a brewing system for brewing approx. 100-litres of beer and offers the advantage of no crane or lifting device. This means that you are completely flexible in terms of installation and can also carry out the entire brewing process on your own. The unit comes with a stainless steel frame on castors, the controls are easily accessible and can be adjusted in angle and height. The pumping device supplied makes it easy to pump into a fermentation tank. The Braumeister is located at a very handy height with a favourable height-to-width ratio, making cleaning a breeze.
- Made of stainless steel incl. frame on castors
- Adjustable control
- Brewing volume 100-120-litres of finished beer (normal beer) = approx. 130-litres of wort

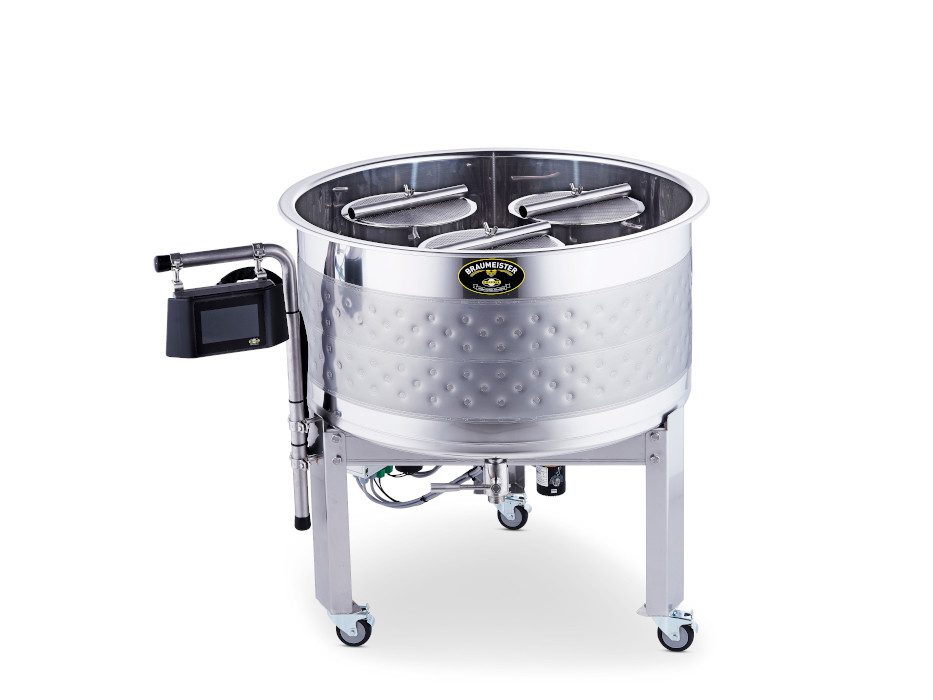

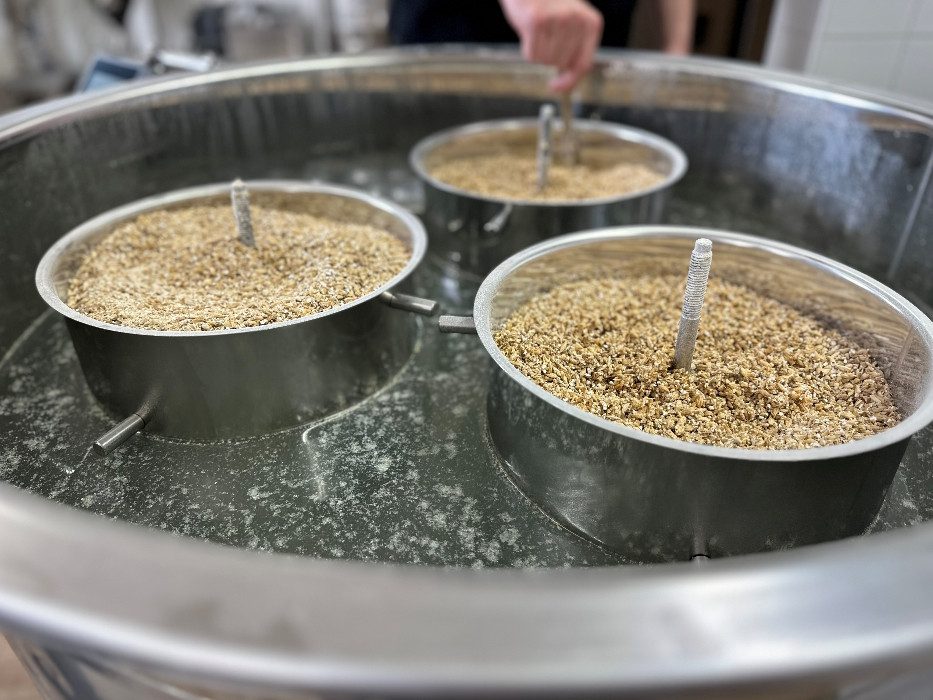

- Max. Malt quantity 21kg – distributed over 3 malt pipes
- includes double jacket for cooling
- includes pumping device for pumping out the wort

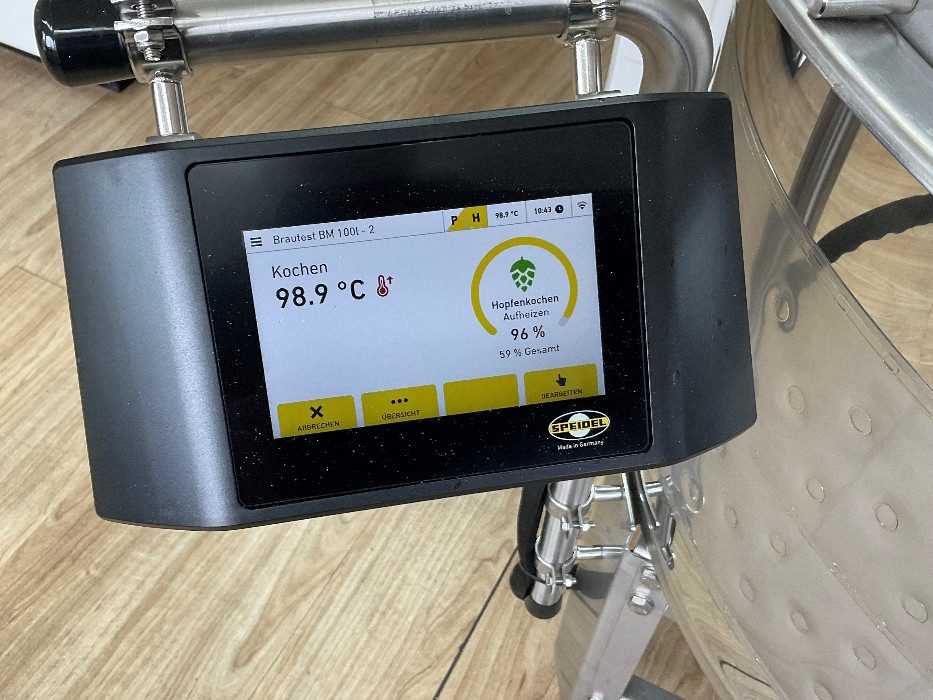

The Control Unit
The new brewing control system brews with your individual recipes and guides you through the brewing process. Recipes can be automatically synchronised or updates loaded using the WiFi module integrated into the control unit. The time and temperatures are maintained precisely during all brewing phases. The Braumeister is even easier to control using the new touchscreen.
Product Code: SP45100
“Item not held in stock, imported to order only. Local delivery from port of arrival additional”
TECHNICAL DETAILS
- Heating coil: 3 x 2,000W heating power
- Pump: 3 x 27W - speed adjustable
- Power connection: 400V (fuse protection min. 16A) - [NB: Requires wiring & NZ plug, not supplied]
- Total connection: 7kW

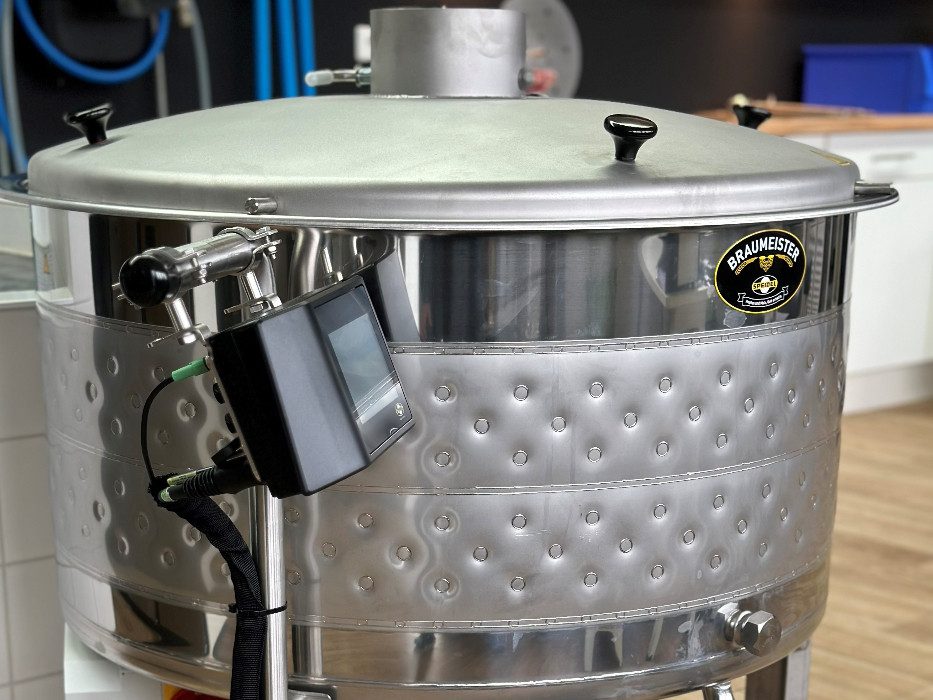

- Cooling: approx. 0.6m2 double jacket surface, with ice water approx. 50 min at 25°C
- New fully automatic brewing control with touchscreen
- Max. Malt quantity: 21kg
- Rear cooling jacket connections 1" AG(2x)
- Outlet tap 1" vertical downwards

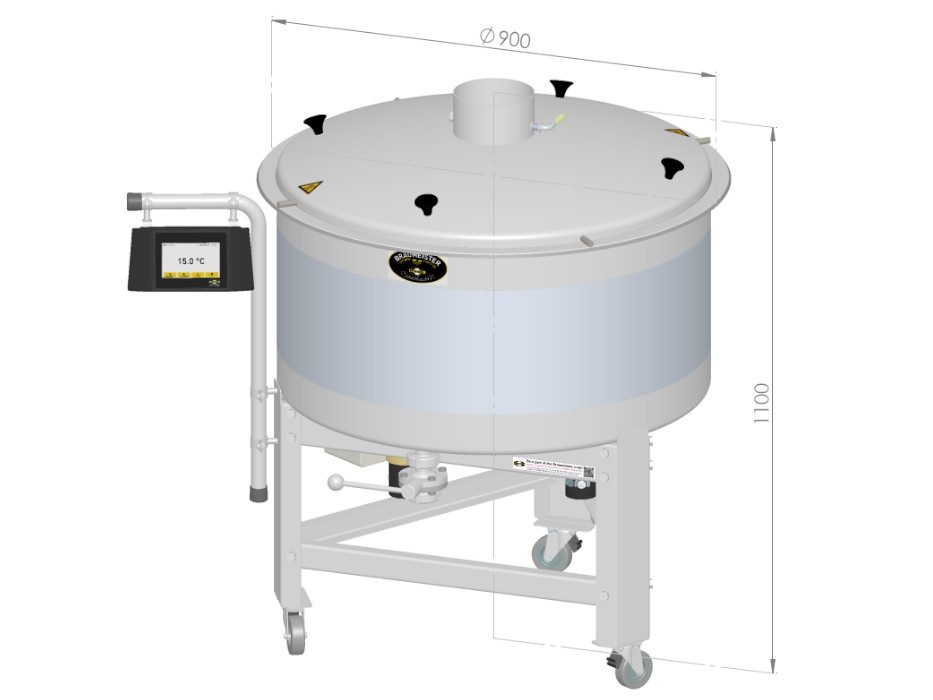

- Weight: 77kg; Dimensions: 90 x 110 cm (diameter x height)
- Shipping Weight: 100kg in wooden crate; Crated Dimensions: 120 x 120 x 125 cm (L x W x H)
